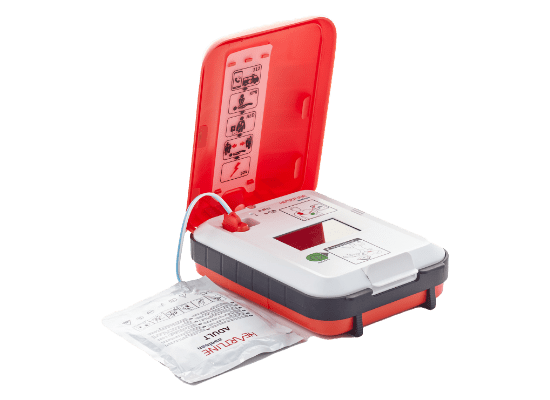

HEARTLINE FULL AUTOMATIC EXTERNAL DEFIBRILLATOR
In cases of sudden cardiac arrest, it is vital to intervene in the first minutes.
OED is an electroshock device developed to perform this critical intervention in sudden cardiac arrests. It is an easy to use, reliable device for the user and the patient.
In case the device recommends giving an electroshock, the device automatically gives SHOCK in semi-automatic devices by pressing the SHOCK button in semi-automatic devices.
HEARTLINE FULL AUTOMATIC EXTERNAL DEFIBRILLATOR
Since the heart's Ventricular Fibrillation or Ventricular Tachycardia status is detected according to the ECG analysis, the device does not apply SHOCK to healthy people.
Device Class -- (93/42/EEC) II B
Operating Temperature 0°C - 50°C
Storage Temperature 30 to +70 °C
Humidity 10% - 95% RH
Sealing IP-55
Working Mode Semi Fully Automatic
Energy Steps Adult: 150J - 200J - 200J
Pediatric: 50J - 50J - 50J 24 VDC(19-57 V)
Quick Shock < 10 seconds
Charge Time < 10 seconds
ECG Analysis Time < 10 seconds
