What Is A DIN Rail Power Supply?

in #semiconductors2 days ago

In industries like industrial automation, electrical control, and energy management, a stable and efficient power supply system is crucial. DIN rail power supplies, designed specifically for mounting on DIN rails, are widely used across the globe due to their high efficiency, standardized installation method, and reliability. This article will explore the definition, working principle, characteristics and advantages, applications, and more about DIN rail power supplies.

I. What is a DIN Rail Power Supply?

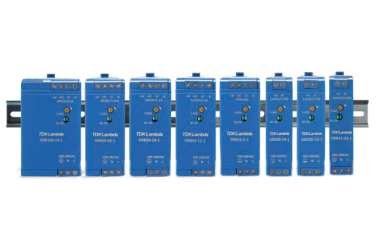

A DIN rail power supply is a power module designed specifically for installation on DIN rails, commonly used in industrial control systems, electrical equipment, and automation facilities. A DIN rail is a metal rail conforming to German standards, widely used in electrical cabinets and control panels. DIN rail power supplies typically convert AC power to DC power to supply energy to devices. Their compact, modular design enables them to provide efficient power in environments with limited space.

II. Working Principle

The working principle of a DIN rail power supply is based on switching power supply technology, which involves several steps:

  • Input Rectification: The incoming AC power is first converted into DC power through a rectifier circuit and filtered to remove fluctuations using capacitors.
  • High-Frequency Switching Conversion: The DC power is then converted into high-frequency pulse current through switching elements like MOSFETs, improving energy transmission efficiency and reducing energy loss.
  • Voltage Conversion and Regulation: Transformers or switching regulators adjust the voltage to the desired level, and a voltage regulation circuit ensures a stable output voltage.
  • Output Voltage Protection: Modern DIN rail power supplies integrate features such as overcurrent, overvoltage, and short circuit protection to ensure the power supply operates stably under varying load conditions.
