The Comprehensive Guide Of The Metal Stamping Process

in #metallast month

Metal Stamping Process

Rewriting the input using scientific and objective language, the process of metal stamping can transform flat metal sheets or coils into precisely shaped and intricate parts through the use of force, pressure, and specialized tooling. This highly versatile and efficient manufacturing process allows for the creation of diverse forms such as bends, curves, cutouts, and embossing, while maintaining low costs and high lead times for both short and long production runs. The resulting parts are consistent in quality, dimensional accuracy, and repeatability.

How It Works

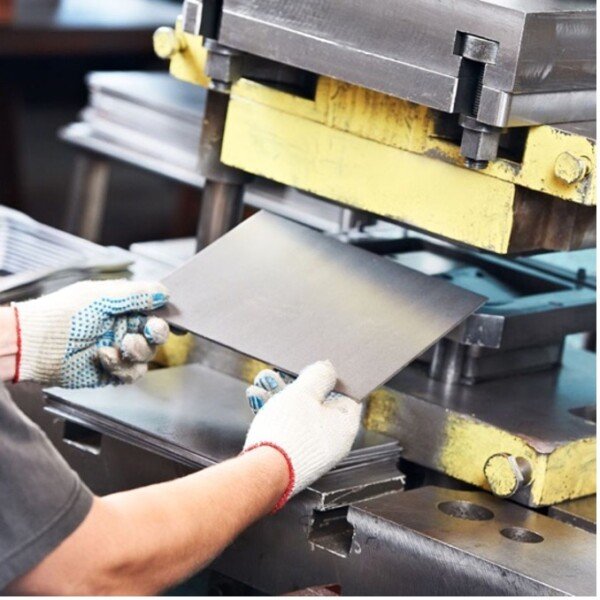

The stamp press is the central component of metal stamping, providing the necessary force and pressure to shape metal sheets or coils. Utilizing specialized tooling called dies, this powerful machine executes numerous stamping maneuvers with precise control and accuracy. Its integration within the production line allows for significant changes in the form and composition of the material.

Delve deeper into the captivating realm of metal stamping to gain a comprehensive understanding of its multiple stages and complexities.


Design and Tooling Preparation

First, experts meticulously plan the desired part geometry during the design and engineering process. Factors such as material properties, die design, and tooling requirements are carefully considered by stamping professionals. Next, the finalized design is plotted with precision using either CAD (computer-aided design) or CAM (computer-aided manufacturing) software. Once the design is completed, specialized tooling including blanking dies, forming dies, and piercing dies is fabricated using advanced machining tools and technology. Quality tool and die design is crucial in ensuring proper material flow, adequate clearance for the metal sheet, and appropriate support for the part during stamping.


Material Preparation

Skilled individuals choose metal sheets or coils based on specified requirements, taking into account mechanical properties like strength and ductility, as well as factors such as corrosion resistance, conductivity, and cost. The chosen material must be suitable for both the stamping process and the desired functionality of the part.

Feeding

The chosen materials undergo preparation processes such as cutting, slitting, and leveling to achieve the required dimensions and flatness for stamping. Afterwards, the metal sheets or coils are fed into the stamping press, where a computerized feeding system guarantees precise placement for precise stamping results.

Stamping Operations

The stamp press begins its operation as the dies come together, exerting significant force and pressure onto the metal. This results in the deformation of the material, taking on the shape of the dies. In addition, various metal-forming techniques may be utilized during stamping, such as blanking (cutting shapes), bending (creating angles or curves), coining (adding fine details), and punching (creating holes or cutouts). These methods are carried out in a sequential or simultaneous manner by experienced professionals, depending on the design of the part.

During the stamping process, operators are responsible for implementing quality control measures which involve real-time monitoring and inspections. Their main objective is to ensure that all parts meet the specified tolerances and quality standards with precision and accuracy.


Finishing and Post-Processing

Following the stamping process, experts in the field may utilize further techniques such as deburring, cleaning, surface treatment, and coating to improve the look, strength, and performance of the stamped components.

Utilizing this systematic method, the stamping process converts raw metal sheets or coils into precisely-shaped components for various industries and applications. This process combines precision engineering, material science, and advanced manufacturing techniques, resulting in continuous innovation for the production of intricate metal parts.

Different techniques and processes are utilized in metal stamping, resulting in several categories. Some of the most common types are outlined below.:

Progressive Stamping

This process is designed to handle large quantities of production by utilizing multiple specialized dies in a progressive sequence. The metal material is fed continuously through the dies, and each individual station performs a designated task, such as cutting, bending, or forming. This allows for the efficient fabrication of intricate parts with multiple features in a single pass.

Transfer Stamping

Similar to progressive stamping, the sheet of metal is transferred between stations in a mechanical system, rather than continuously moving through the dies. This method is commonly utilized for larger and more intricate parts that may need precise positioning or further operations.

Four-Slide Stamping

Multi-slide stamping, also referred to as a four-slide machine technique, is utilized to produce intricate shapes and perform multiple bending and forming operations at the same time. This method is commonly used for smaller, complex parts with multiple bends or curves, making it a highly efficient process.

Deep Drawing

The cylindrical or box-shaped parts are produced using a stamping process that utilizes a blank and a die. A punch is then used to force the blank into the die cavity, causing the metal to undergo plastic deformation and take on the shape of the die cavity. The end result is a deep-drawn component.

Fine Blanking

A specialized fine blanking die with three distinct cutting edges is utilized in the precision stamping process to create superior, burr-free parts. For components that demand exceptional flatness, dimensional accuracy, and edge quality, experts frequently turn to the fine blanking technique.

Selecting the appropriate stamping process involves considering factors such as part complexity, production volume, and desired quality. Each type of stamping process has its own advantages and applications, making it crucial for manufacturers to carefully evaluate their options.

Types of Stamping Presses and Dies


  1. Mechanical presses are commonly utilized in stamping processes, powered by a flywheel to deliver force onto metal sheets. These presses are known for their quick speed and are ideal for high-volume manufacturing. They can be categorized based on their drive systems, including crank, eccentric, or knuckle-joint presses.

  2. This hydraulic press utilizes the power of hydraulics to generate force. By employing hydraulic cylinders, it provides precise control and adjustability when exerting pressure on metal sheets. Its heavy-duty capabilities make it a popular choice for deep drawing and other demanding operations.

  3. Experience the best of both worlds with servo presses - the perfect blend of mechanical and hydraulic press features powered by servo motor control for unparalleled precision. By harnessing the power of servo motors, servo presses offer precise positioning, speed control, and programmability, making them the ideal choice for applications that demand a high level of accuracy, flexibility, and energy efficiency.

How Metal Stamping is Applied

Metal stamping has a wide range of uses in different industries, thanks to its versatility and its ability to create precise, high-quality, and one-of-a-kind components.

Automotive Industry

This process is crucial for the automotive manufacturing sector, as it produces various components including body panels, brackets, chassis parts, engine mounts, and suspension components. Its main goal is to create lightweight, long-lasting, and stable parts that meet high standards for safety and performance.

Aerospace Sector

The aerospace sector has embraced metal stamping, leading to the production of important components such as aircraft structural parts, engine parts, brackets, and fittings. This process allows for the creation of lightweight parts with intricate designs, while still maintaining strength and durability. As a result, fuel efficiency and performance are improved.

Electronics Industry

Electronic devices, such as connectors, terminals, heat sinks, shielding components, and brackets, are commonly utilized in the electronics industry. The advancement of metal stamping has enabled the accurate production of detailed parts needed for electronic assemblies, guaranteeing both efficient electrical conductivity and durability.

Household Appliances

Utilized extensively in the production of household appliances, such as refrigerators, washing machines, ovens, and HVAC systems, this process creates various components, including panels, enclosures, brackets, and handles. These components not only enhance the aesthetic appeal of the product, but also contribute to its structural integrity.


Healthcare Industry

Devices used in the medical industry, such as surgical instruments, orthopedic implants, brackets, and connectors, contain components that have undergone the metal stamping process to create precise, sterile, and biocompatible parts essential for medical use.

Construction Industry

In the construction industry, metal stamping products are used to create durable and corrosion-resistant parts, such as brackets, connectors, fasteners, hinges, and cladding panels. These products are essential for meeting the demanding requirements of the industry due to their strength and longevity.
