Medium frequency induction furnace

1, medium frequency induction furnace consists of:

KGPS IF power supply – compensation capacitor cabinet – aluminum shell furnace or steel shell furnace – tilting furnace system – remote control box , closed loop cooling tower.

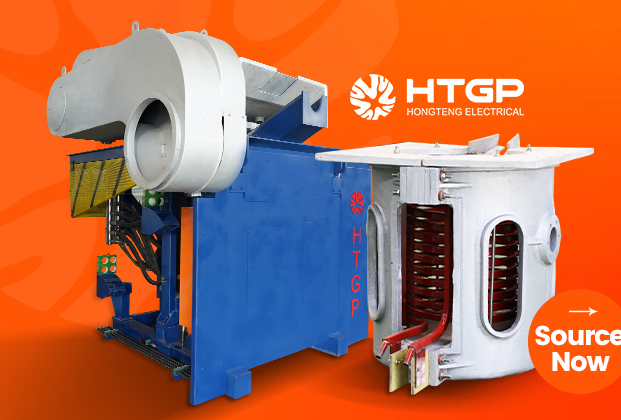

2 , furnace structure ( steel shell furnace and aluminum shell furnace )

Aluminum shell furnace body; aluminum shell, induction coil , reducer

The steel shell furnace body includes: a steel shell furnace body , an induction coil, and a magnetic field shielding system . Three major parts

3 , KGPS IF power supply ,

Frequency induction furnace according to the power of the size can be selected KGPS frequency power supply , 12 pulse frequency power supply and a 24 pulse frequency power supply may be selected IGBT frequency power supply . The control mode of the IF power supply can be designed as local control, touch screen control, remote control, and computer control.

Medium frequency induction furnace technical parameters :

Medium frequency induction furnace model GWGY – 1 GWGY -2 GWGY -3
Rated capacity (T) 1 2 3
Medium frequency power ( KW ) 1000 1500 2000
Frequency ( Hz ) 1000 800 800
Rated temperature ( °C ) 1650 1650 1650
Melting time (minutes / furnace) 60 60 80
Power consumption ( kwh/t ) 550~600 550~600 550~600
Cooling water pressure 0.2~0.3Mpa 0.2~0.3Mpa 0.2~0.3Mpa
Inlet water temperature ( °C ) ≤35 ≤35 ≤35
Outlet water temperature ( °C ) ≤55 ≤55 ≤55
