Hi There steemit community Today i will share to you if what are the different types of resistors, there usage and unique characteristics and color coding.

COLOR CODING GUIDE TABLE

Resistor characters

Each resistor has two main characteristics.

1. Its resistance value in ohms
2. its power dissipating capacity in watts

Resistors are employed for many purposes such as electric heaters,telephone equipments, electric
and electronic circuit elements and in current limiting devices. As resistors are used in wide
applications there values like power rating,R value, tolerance etc vary. Resistors of resistance
value ranging from .1ohms to many mega ohms are manufatured. Acceptable tolerance levels
range from +/- 20% to as low as +/-.001%. The power rating may be as low as 1/10 watts and
can be in several hundred watts. These all vary in range and type of application a particular
resistor is used.

Classification of resistors

1. The fixed resistors

Fixed resistors are further classified into:

a) Carbon composition type resistors

This is the most common type of low wattage resistor. The resistive material is of carbon-clay
composition and the leads are made of tinned copper. These resistors are cheap and reliable and
stability is high.

b) Metalized type resistors

It is constructed using film deposition techniques of depositing a thick film of resistive material
onto an insulating substrate.Only approximate values of resistance can be had by this method.

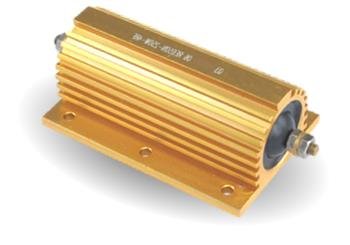

c) Wire wound type resistors

These resistors are a length of wire wound an insulating cylindrical core. Usually wires of
material such as constantan (60% copper and 40% nickel) and manganin which have high
resistivities and low temperature coefficients are employed. The completed wire wound resistor
is coated with an insulating material such as baked enamel.

2.Adjustable/ variable resistors

For circuits requiring a resistance that can be adjusted while it remains connected in the
circuit(for eg: volume control on radio), variable resistors are required. They usually have 3 lead
two fixed and one movable.

HOPE IT HELPED.

THANK YOU.
