Harman Kardon 1962 amplifier and tuner renovation

in #harman • 8 years ago (edited)

One of my favorite lamp project :

Amplifier:
Harman Kardon A 500 lamp amplifier 2x25 W
Power output: 25 watts per channel into 8Ω (stereo)

Speaker load impedance: 4Ω to 16Ω
Valve complement: 4 x 12AX7, 1 x 12AU7, 4 x 7355
Dimensions: 400 x 145 x 320mm
Weight: 15kg

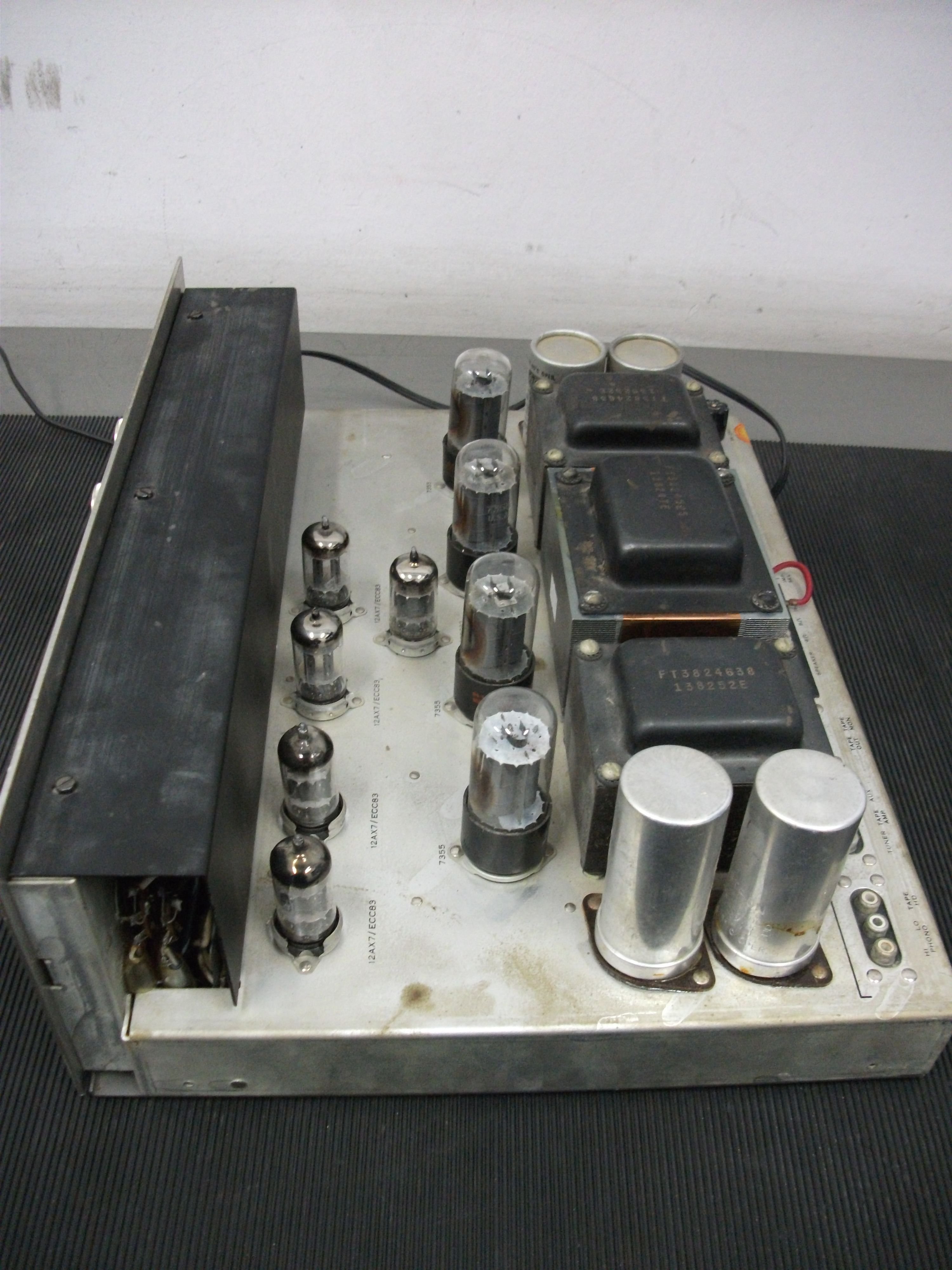

Before:
DSCF7133.JPG08 (1).JPG08 (7).JPG08 (4).JPG

After:

Tuner:
Harman Kardon F 50 XKIMG_3942.jpg

#amplifier #tube #vintage #audio
