SLC S22W6//" Creating an Electrical Series Board."

I will show you how to make a simple series board here. I will need: -

Below is explanation in different steps about making series board;

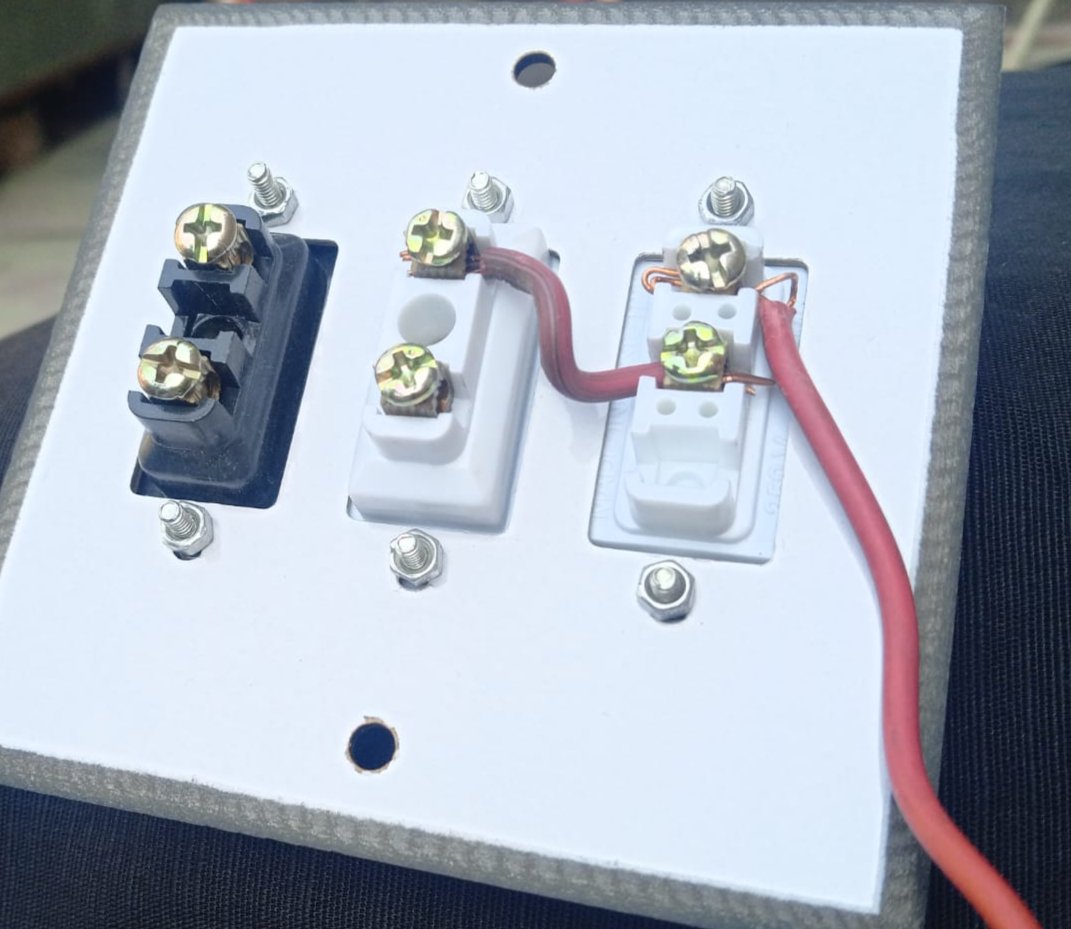

. If I talk about first step then here red wire(line wire)is connected to 1 point of switch
. In this step second point of switch is connected to socket in which bulb is fitted

. Here in this step second point of bulb socket is connected to one point of load socket

. In this step second point of load socket is connected to neutral wire( black wire)as you can see in the picture.

. In this step you can see that red and black wire is connected to each point of plug.

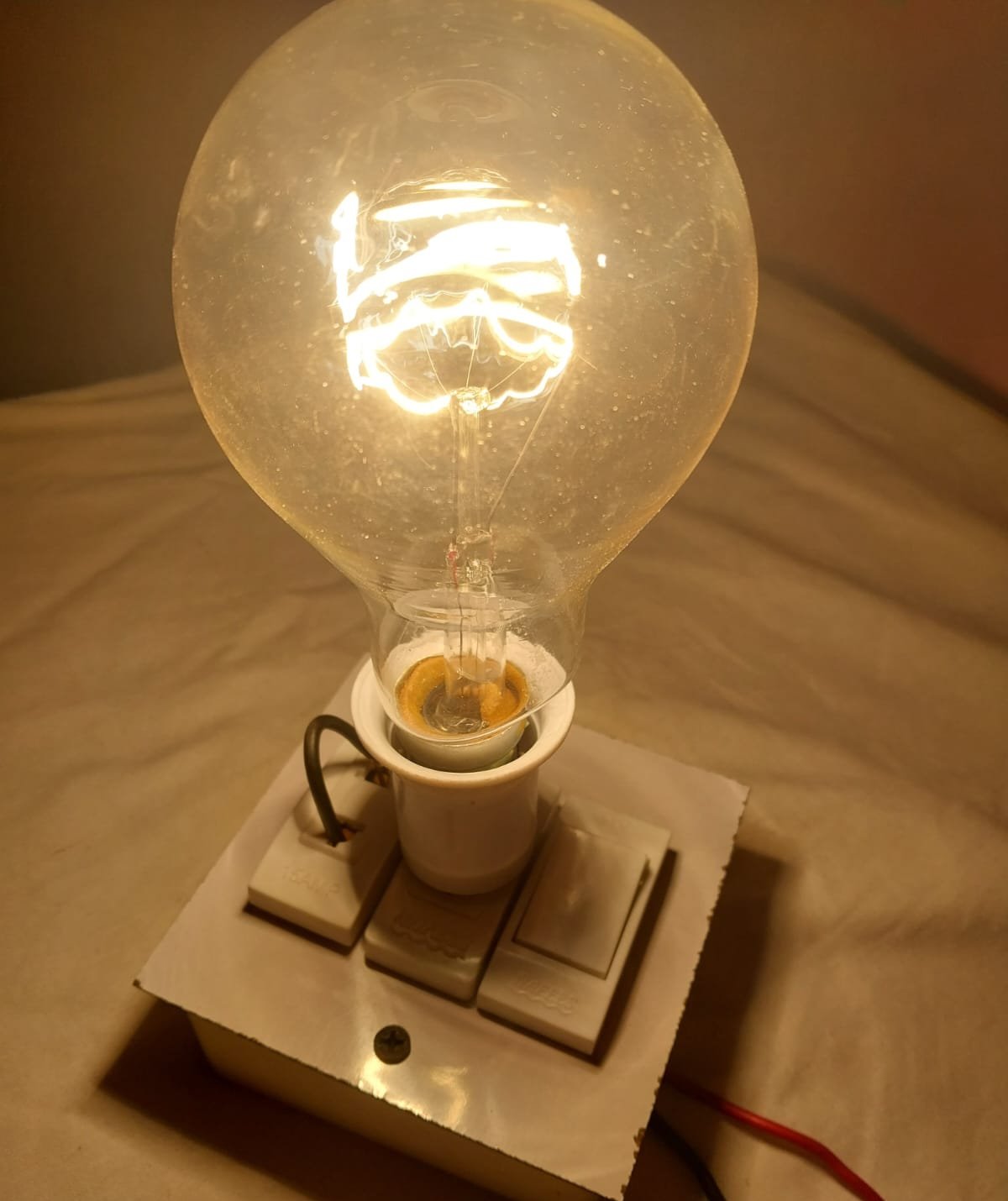

Now it's a step in which holder with bulb is fitted in the bulb socket as you can see in picture.

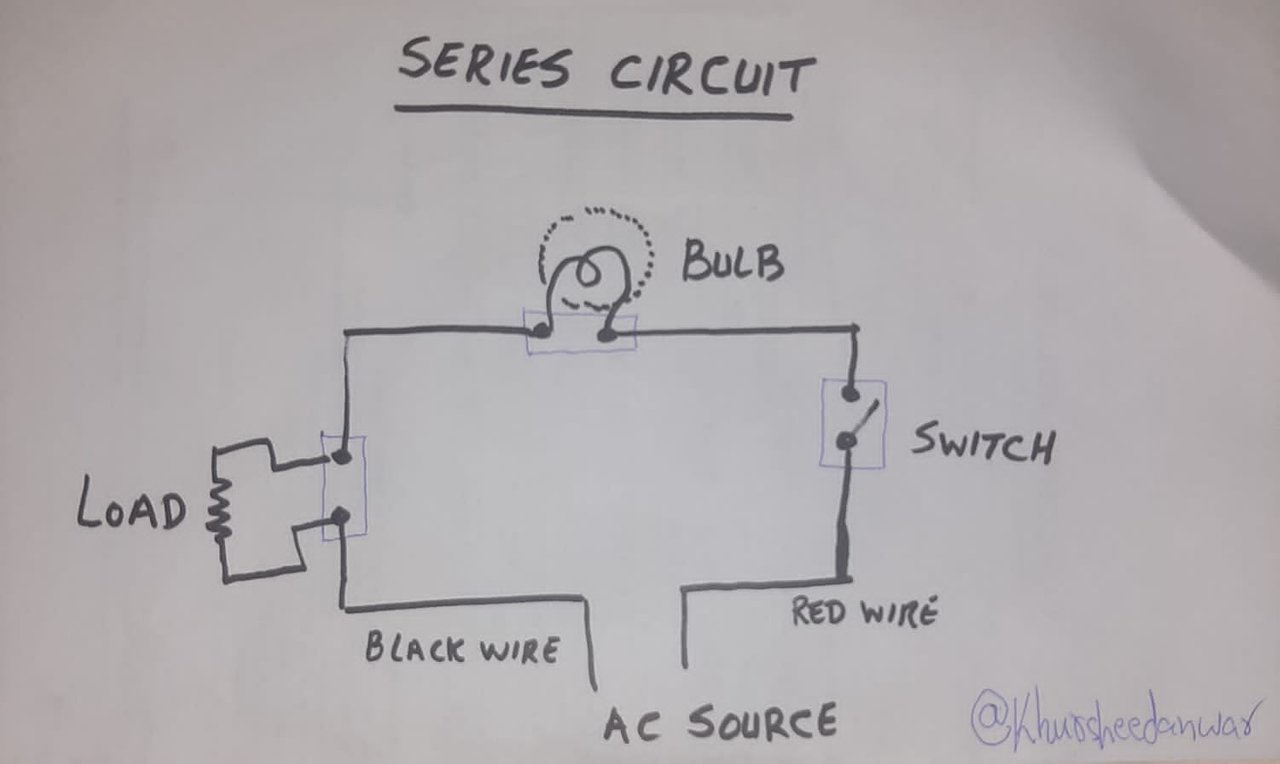

Now below illustration in diagram;

Now here we have to check with two electronic devices with series board so let's have a look at two different electronic devices in which I am using hair drier first and then television as an example;

When we connected an electronic device i.e hair drier in the load socket the bulb shows dim light which means the hair drier is drawing small current which means there is no short in the hair drier circuit.

Now let's have a look t another electronic device example;

When we connected an electronic device i.e television in the load socket the bulb shows dim light which means the television is drawing small current which means there is no short in the television circuit.

Now here we need to check with short piece of cable in series board;

When we short circuited by a short wire in the load socket the bulb showed full light which means that there is short circuit in the load
When we connected an electronic device

i.e hair drier in the load socket the bulb showd dim light which means the hair drier is drawing small current which means there is no short in the hair drier ciruit.
