PICTURE OF THE DAY; I BUILT MY FIRST POWER CIRCUIT

Wow, electronics isn't that easy, from measuring volts(AC and DC), measurement of components both good and bad,checking if a circuit board is good or not , and if every connective path are okay....crap what a task.

Today I did create something I thought I wouldn't be able to do, with or without the help of my supervisor "actually he's my boss". But I found grace in God's sight and I did accomplished it.

I built a power supply circuit that could convert AC(alternative current) to DC(direct current)at high voltage cause it isn't complete.
My boss had already given me the layout of the circuit and I started building step by step though some part got me confused while I was leading components to each other
I used components like
A capacitor.
4 diodes.
2 inductors
A fuse

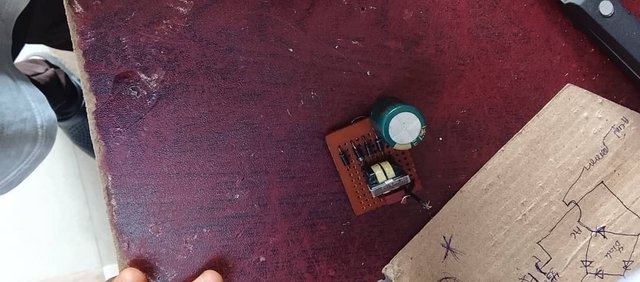

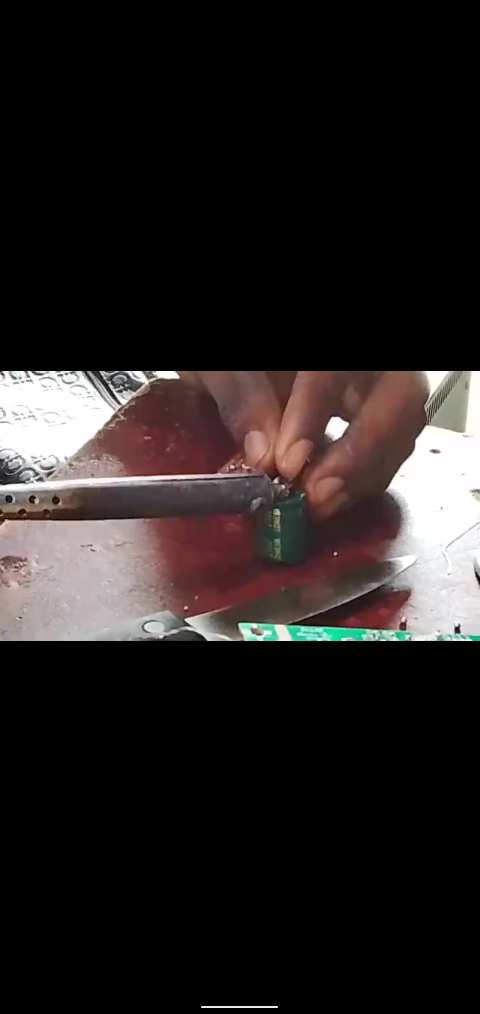

Then I got my ferrous board which I will connect the components to each other to form my circuit. And then I got in to work linking the appropriate terminals to each other and creating the connection path,from the AC cables(which are normal flex cables) to the fuse,then to the inductors then to the positive and negative terminals of the rectifier input,then goes to the capacitor terminals through the output terminals of the rectifier. So it goes and my circuit was ready.... It was so complicated but i thrived and i got to the finished line...I was done and the only thing remaining was to test it out if I had done it right,I took the multimeter, and started testing with the help @us-andrew,behold it was working."wow it worked"it really made me joyous.

Today really is the happiest day of my life"for the week actually 😒" I really made a working circuit. It reminds me that I could build anything I want if I believe I could do it.Even the greatest inventors were once where I am.
