555 Timer IC – Introduction to a Wonderful Electronic Component.
Assalamualaikum Everyone. I am @imranhassan
From #Bangladesh
.png)
For those of us who love to learn electronics or enjoy making new circuits, the 555 Timer IC is a very familiar and useful component. It is so versatile that we can use it from small homemade projects to large industrial devices.
 |
|---|
Posting about the 555 timer IC and its pinout explanation. Then, I will explain different types of circuits – such as astable, monostable, delay timer, LED flasher, touch sensor, and many other types of circuits – step-by-step.
| Why is the 555 IC so popular? |
|---|
Created in 1972 by Hans R. Camenzind, an engineer at Signetics, this small IC revolutionised the world of electronics because it was very easy to use and could be used for many purposes.
| The 555 Timer IC works in three modes: |
|---|
Monostable – outputs once
Astable – repeatedly turns on and off automatically (like a flashlight)
Bistable – remains in two stable states (like a switch on and off)
I believe these posts will be a great source of learning for everyone. If you are interested in electronics, then this series is ideal for you.

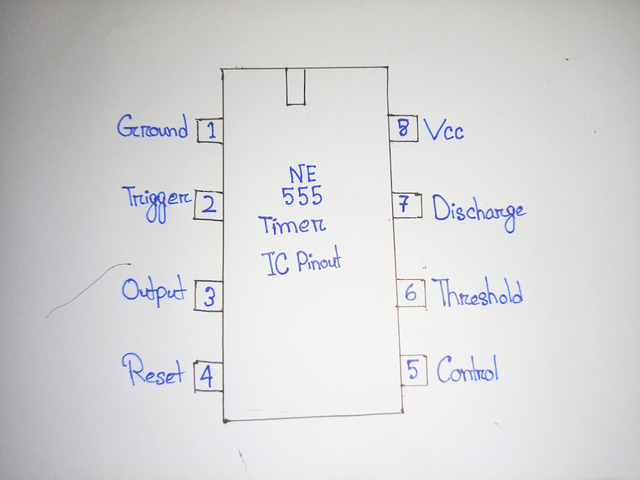

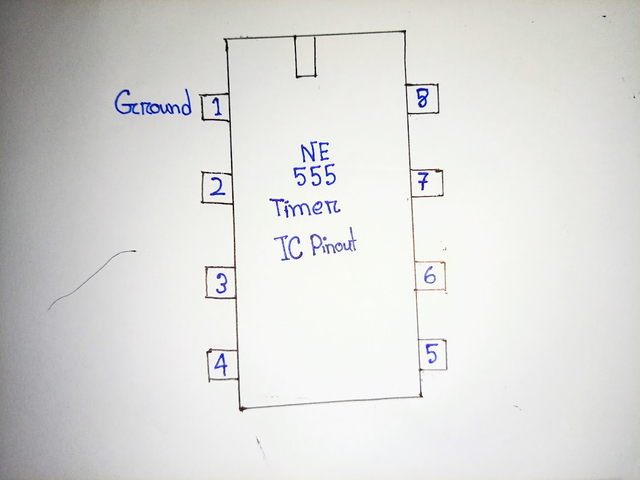

| Now I will show the 555 IC pinout and explain what each one does. The 555 IC has a total of 8 pins. The function of each pin is explained below. |
|---|

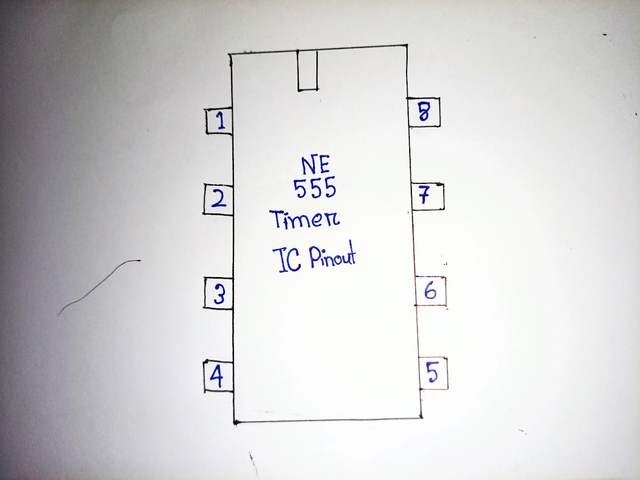

| PIN number 1 GND |
|---|
This is the ground pin, which acts as the negative terminal of the IC.

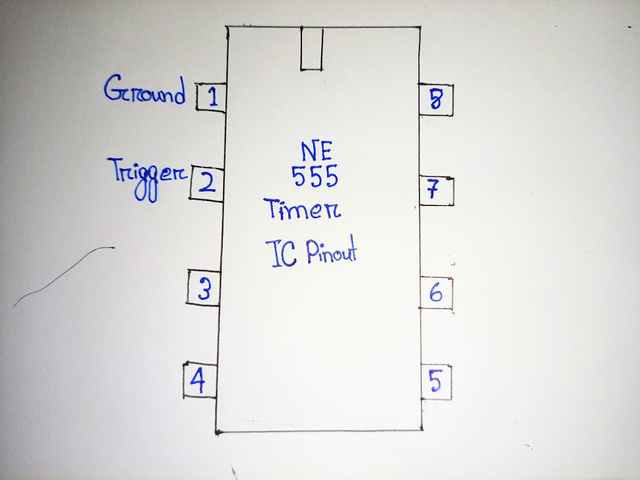

| PIN number 2 Trigger |
|---|
When a signal below a certain voltage comes to this pin, it turns on the output.

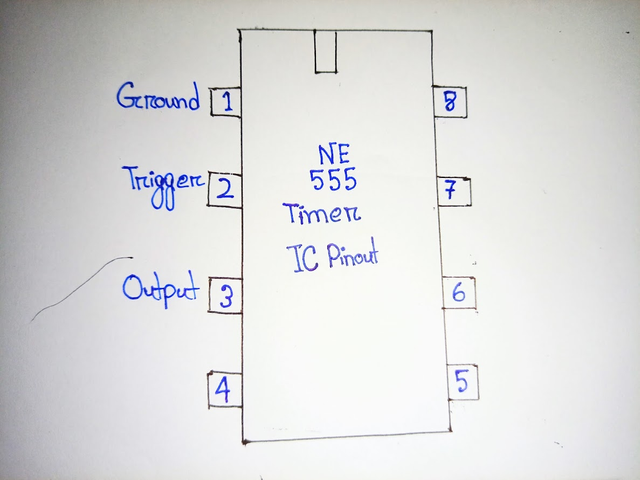

| PIN number 3 Output |
|---|
The main output signal is available from this pin.

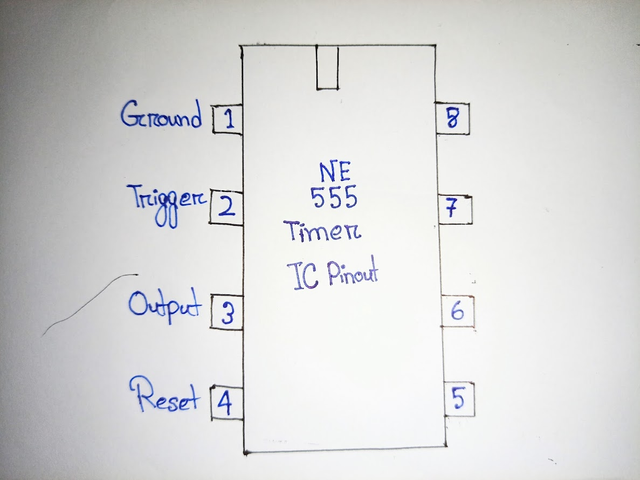

| PIN number 4 Reset |
|---|
Used to reset the IC. Usually it is connected to Vcc so that it does not reset unexpectedly.
| PIN number 5 Control Voltage |
|---|
Used to control the timing. However, if not used, a 0.01μF capacitor is usually connected to ground.

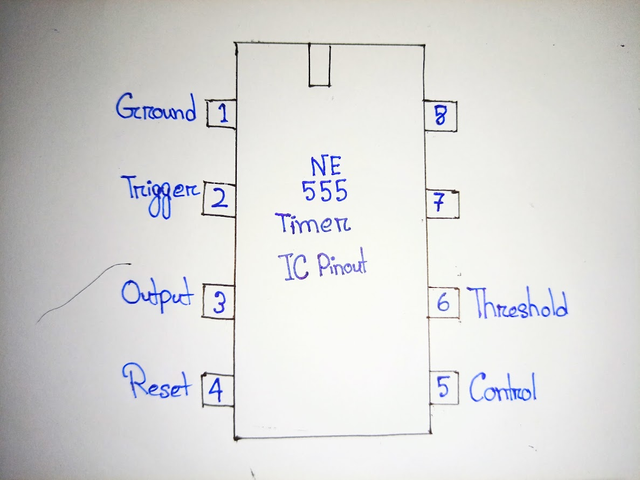

| PIN number 6 Threshold |
|---|
It monitors the voltage of the capacitor and changes the output when it reaches a certain level.
| PIN number 7 Discharge |
|---|
This pin is used to discharge or empty the capacitor charge.
| PIN number 8 Vcc |
|---|
This is the positive power supply pin. Usually, a supply from 4.5 volts to 15 volts can be provided.
I have learnt and written this information along with the diagrams I drew myself so that you can understand it step by step. InshaAllah, in the next post we will discuss its practical circuit in detail.
.gif)

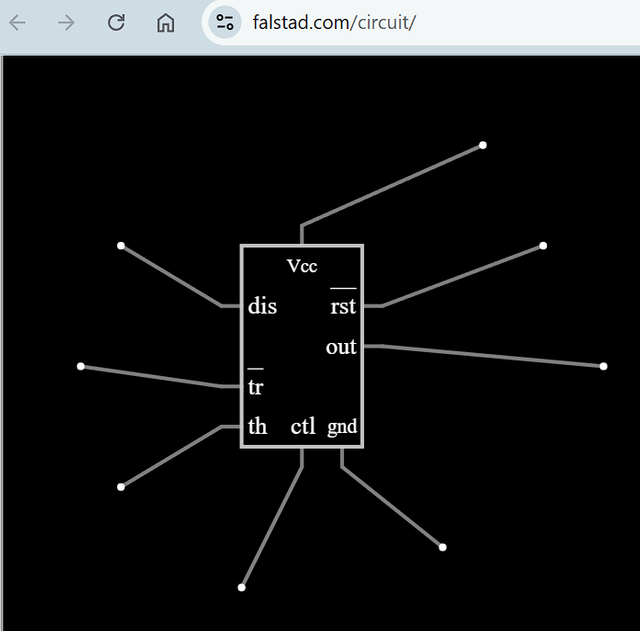

I got acquainted with the timer, but for beginners like me it is better to learn all this in such online emulators of electrical circuits. If you understand electronics, then this application will be easy to understand. And I have nothing except a small desire)) neither knowledge nor electronic components to experiment - so all my hope is for an online application.
