Agent开发，LangGraph Tool Calling Agent / ai #44

Tool Calling Agent（工具调用代理）是LangGraph支持的一种AI Agent代理架构。这个代理架构是在Router Agent的基础上，大模型可以自主选择并使用多种工具来完成某个条件分支中的任务。工具调用大家应该非常熟悉，当我们希望代理与外部系统交互时，工具就非常有用。大模型能根据用户的自然语言输入选择调用工具，并将返回符合该工具架构的输出。

经过ToolNode工具后，其返回的是一个LangChain Runnable对象，会将图形状态（带有消息列表）作为输入并输出状态更新以及工具调用的结果，通过这种设计去适配LangGraph中其他的功能组件。比如我们后续要介绍的LangGraph预构建的更高级AI Agent架构 - ReAct，两者搭配起来可以开箱即用，同时通过ToolNode构建的工具对象也能与任何StateGraph一起使用，只要其状态中具有带有适当Reducer的messages键。由此，对于ToolNode的使用，有三个必要的点需要满足，即：

1. 状态必须包含消息列表。
2. 最后一条消息必须是AIMessage。
3. AIMessage必须填充tool_calls。

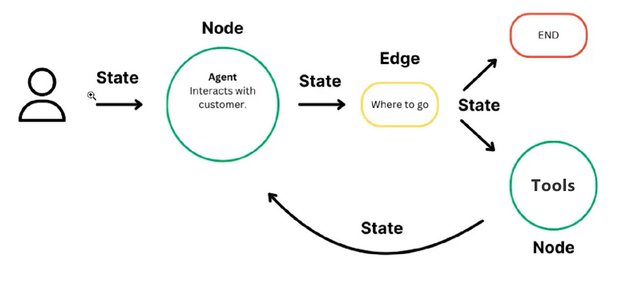

工具调用代理示意图

案例：联网查找的代理

from typing import Union, Optional, TypedDict, Annotated
from pydantic import BaseModel, Field
from dotenv import dotenv_values
from langchain_openai import ChatOpenAI
from langgraph.graph import StateGraph, END
import operator, requests, json
from langchain_core.messages import AnyMessage, SystemMessage, HumanMessage, ToolMessage, AIMessage
from langchain_core.tools import tool
from langgraph.prebuilt import ToolNode


env_vars = dotenv_values('.env')
OPENAI_KEY = env_vars['OPENAI_API_KEY']
OPENAI_BASE_URL = env_vars['OPENAI_API_BASE']
SERPER_KEY = env_vars['SERPER_KEY']

llm = ChatOpenAI(model="gpt-4o-mini", api_key=OPENAI_KEY,base_url=OPENAI_BASE_URL)


class SearchQuery(BaseModel):
    query: str = Field(description="Questions for networking queries")

class AgentState(TypedDict):
    messages: Annotated[list[AnyMessage], operator.add]

@tool(args_schema = SearchQuery)
def fetch_real_time_info(query):
    """Get real-time Internet information"""
    url = "https://google.serper.dev/search"
    payload = json.dumps({
      "q": query,
      "num": 1,
    })
    headers = {
      'X-API-KEY': SERPER_KEY,
      'Content-Type': 'application/json'
    }
    response = requests.post(url, headers=headers, data=payload)
    data = json.loads(response.text)
    if 'organic' in data:
        return json.dumps(data['organic'],  ensure_ascii=False)
    else:
        return json.dumps({"error": "No organic results found"},  ensure_ascii=False)


def chat_with_model(state):
    """generate structured output"""
    messages = state['messages']
    response = llm.invoke(messages)
    return {"messages": [response]}

# 判断是否要工具调用
def exists_function_calling(state: AgentState):
    result = state['messages'][-1]
    print(563, "exists_function_calling")
    return len(result.tool_calls) > 0

# 不调用工具
def final_answer(state):
    """generate natural language responses"""
    messages = state['messages'][-1]
    return {"messages": [messages]}

# 调用工具
def execute_function(state: AgentState):
    tool_calls = state['messages'][-1].tool_calls
    results = []
    tools = [fetch_real_time_info]
    tools = {t.name: t for t in tools}
    for t in tool_calls:
        if not t['name'] in tools:
            result = "bad tool name, retry"
        else:
            result = tools[t['name']].invoke(t['args'])
        results.append(ToolMessage(tool_call_id=t['id'], name=t['name'], content=str(result)))
    return {'messages': results}


# 请你基于现在得到的信息，进行总结，生成专业的回复
SYSTEM_PROMPT = """
Please summarize the information obtained so far and generate a professional response.
"""

# 拼接查找的信息后再最终生成结果
def natural_response(state):
    """generate final language responses"""
    messages = state['messages'][-1]
    messages = [SystemMessage(content=SYSTEM_PROMPT)] + [HumanMessage(content=messages.content)]
    response = llm.invoke(messages)
    return {"messages": [response]}


graph = StateGraph(AgentState)

graph.add_node("chat_with_model", chat_with_model)
graph.add_node("execute_function", execute_function)
graph.add_node("final_answer", final_answer)
graph.add_node("natural_response", natural_response)

# 设置图的启动节点
graph.set_entry_point("chat_with_model")
graph.add_conditional_edges(
    "chat_with_model",
    exists_function_calling,
    {True: "execute_function", False: "final_answer"}
    )
graph.add_edge("execute_function", "natural_response")
graph.set_finish_point("final_answer")
graph.set_finish_point("natural_response")
graph = graph.compile()


tools = [fetch_real_time_info]
llm = llm.bind_tools(tools)

messages = [HumanMessage(content="what is labubu")]  #测试
result = graph.invoke({"messages": messages})
res = result["messages"][-1].content
print(896, res)

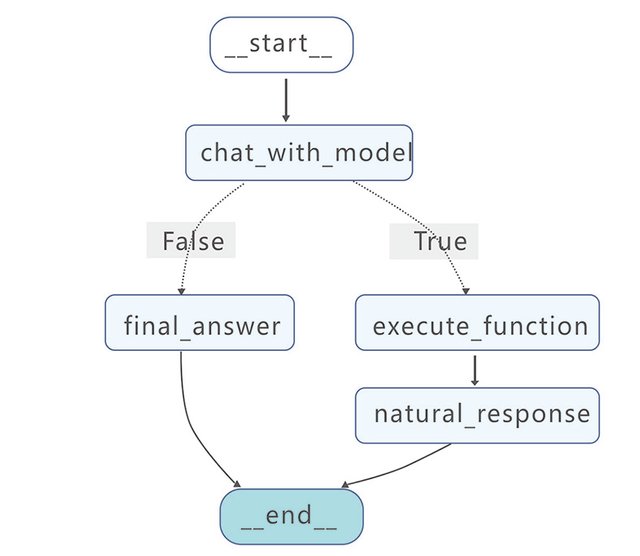

整体流程如上所示

测试：labubu是新事物，直接问大模型，它是不知道的，所以它会自动启用联网搜索工具fetch_real_time_info，把搜索结果和提示词组合后再问大模型就可以得到比较正确的结果啰。下面是我的测试，可以参考：
The information gathered pertains to a viral toy called Labubu, which is inspired by a story series titled "The Monsters" created by artist Kasing Lung from Hong Kong. The source of this information is an article from E! News dated three days ago.
Here's a professional response summarizing the key points:
Subject: Overview of the Labubu Toy
Dear [Recipient's Name],
I wanted to share some intriguing insights regarding the newly viral toy, Labubu. This toy draws inspiration from "The Monsters," a series created by Hong Kong artist Kasing Lung. The combination of artistic storytelling and playful design has caught the attention of many, driving its popularity.
For more detailed information, you can explore the full article published by E! News here.
